Tilcor Roofing Systems
Stone-coated steel shingle, shake and tile, backed by a Limited Lifetime Warranty.
Our Products
Four stone-coated steel profiles from Tilcor's US line.

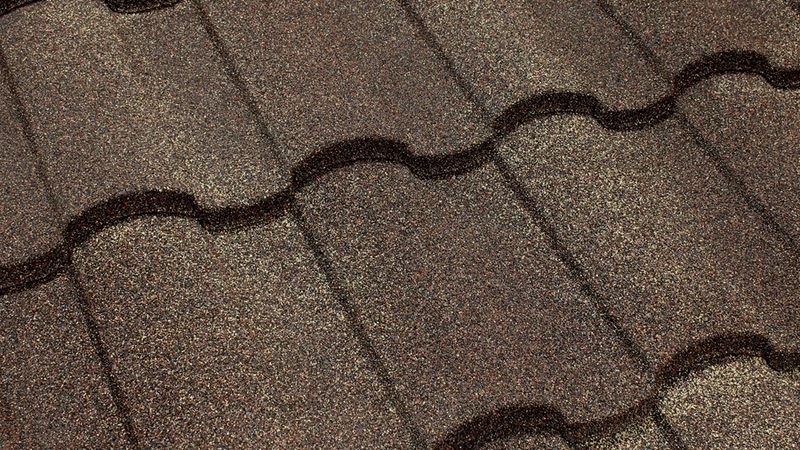

Antica
The graceful style of the Mediterranean
Inspired by the Mediterranean, Antica takes the strong flowing curves of a Spanish tile and combines them with the strength and durability of stone coated steel, so you can achieve the Spanish Tile style without the inherent weight and cost of clay tiles.
Colors
made to order
Specifications
| Overall length | 50 63/64" |
| Length of cover | 47 7/8" |
| Width of cover | 14 3/8" |
| Tiles per square | 21 |
| Weight / tile | 6.61 lbs |
| Weight / square | 133 lbs |
| Min. roof pitch | 3/12 |

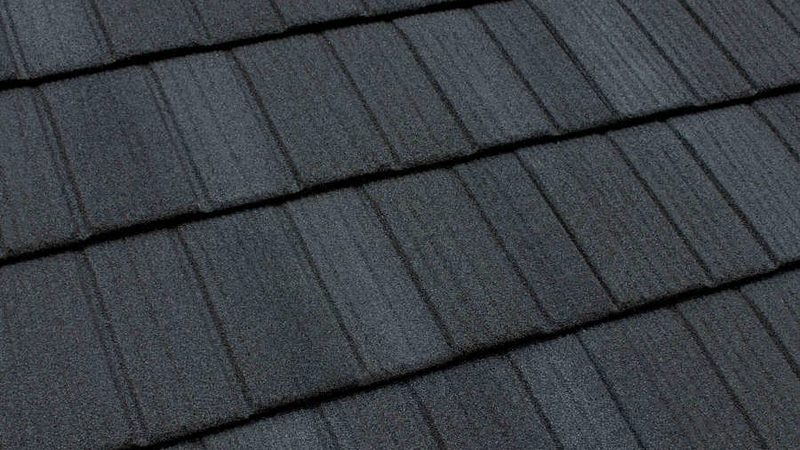

CF Shake
Rustic charm of traditional shake with "Concealed Fastening" technology
Designed for the North American market to embrace the rustic charm of traditional shake with the strength of a stone coated steel panel. Its deep-ribbed profile enhances the shadow lines, and the fully Concealed Fastening (CF) system hides screws from sight and the elements.
Colors
Specifications
| Overall length | 52 5/8" |
| Length of cover | 49 5/8" |
| Width of cover | 14 9/16" |
| Tiles per square | 20 |
| Weight / tile | 7.05 lbs |
| Weight / square | 141 lbs |
| Min. roof pitch | 3/12 |

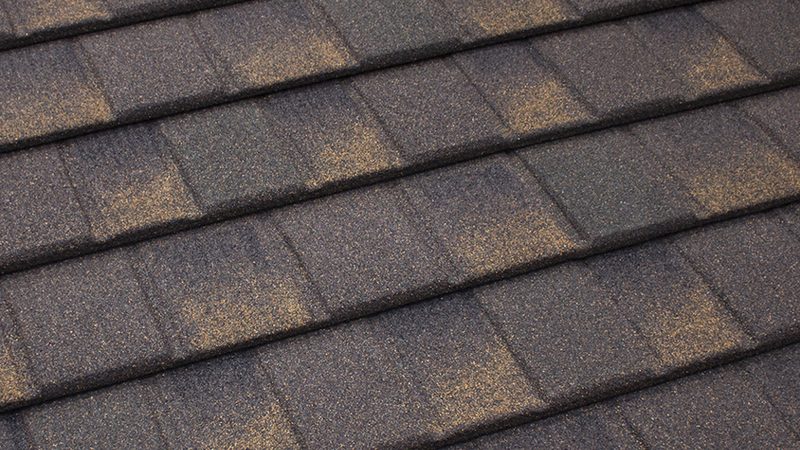

CF Shingle
Shingle style with "Concealed Fastening" technology
Designed for the North American market to resemble traditional asphalt shingles with a far superior serviceable life. A low profile stone coated steel panel with fully concealed fastening, and it can be overlaid on existing asphalt shingle roofs.
Colors
made to order
made to order
made to order
Specifications
| Overall length | 52 5/8" |
| Length of cover | 49 5/8" |
| Width of cover | 14 9/16" |
| Tiles per square | 20 |
| Weight / tile | 7.05 lbs |
| Weight / square | 141 lbs |
| Min. roof pitch | 3/12 |

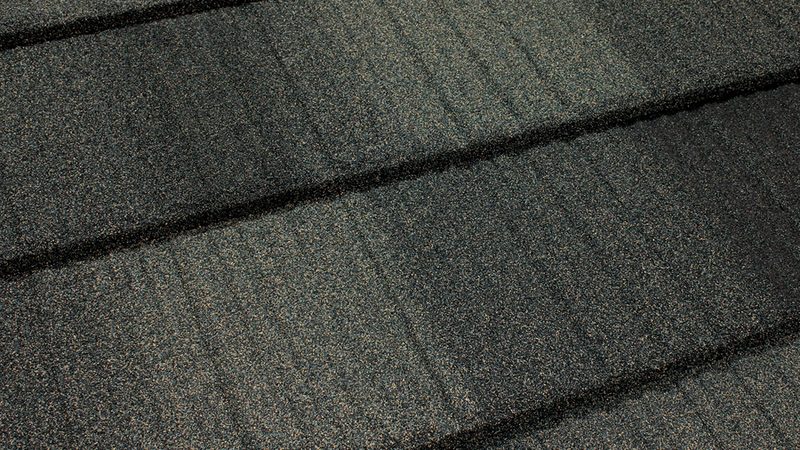

Craftsman Shake
The rustic charm of traditional shake
Textured tiles with the wood-grain appearance of traditional shake and a deep-ribbed profile that enhances shadow lines, combined with the benefits of stone-coated steel: exceptional weather and fire resistance, and long life.
Colors
made to order
Specifications
| Overall length | 52 5/32" |
| Length of cover | 49 3/4" |
| Width of cover | 14 1/2" |
| Tiles per square | 20 |
| Weight / tile | 6.39 lbs |
| Weight / square | 128 lbs |
| Min. roof pitch | 3/12 |
Why Tilcor
Limited Lifetime Warranty
- Covers manufacturing defects that cause leaks, panel blow-off in winds up to 120 mph, or penetration by hailstones 2.5" or smaller.
- Also covers loss of surface coating that substantially impairs appearance (normal weathering and minor granule loss excluded).
- Years 1–20: labor and materials. Years 21–40: materials only, prorated. Year 41 and beyond: 20% of materials cost.
- Transferable once to the next owner, with notice within 30 days of the sale.
Summary only. The warranty document governs. Read the full warranty on Tilcor.com ↗
Ready to get started on your roofing project?
Call or send an order form for pricing and availability.
