Timberline HDZ® Shingles
GAF’s #1-selling shingle. Built without compromise, Timberline HDZ® Shingles offer industry-first technologies and powerful warranties, with Time-Release Algae-Fighting Technology backed by a 25-year StainGuard Plus™ warranty* and eligibility for the WindProven™ Limited Wind Warranty with no wind speed limit*.
Colors

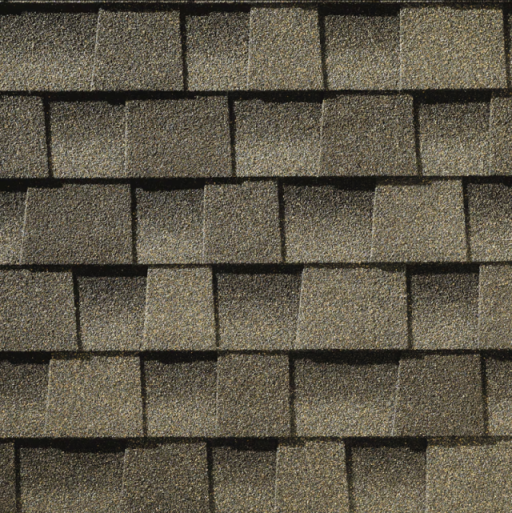

Weathered Wood

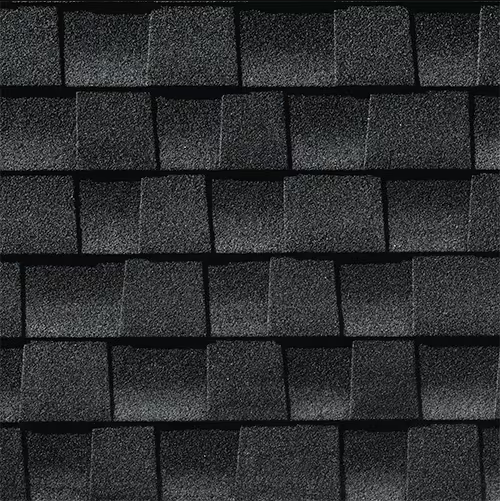

Charcoal

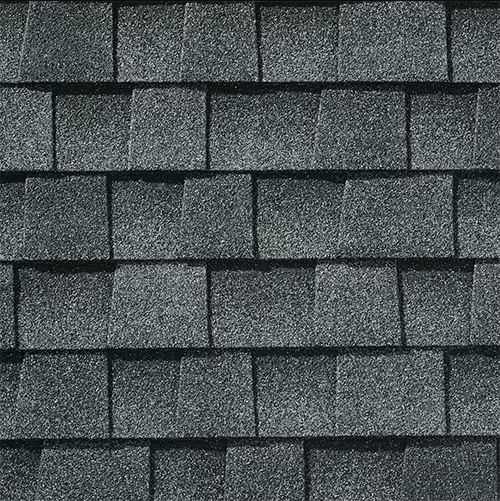

Pewter Gray

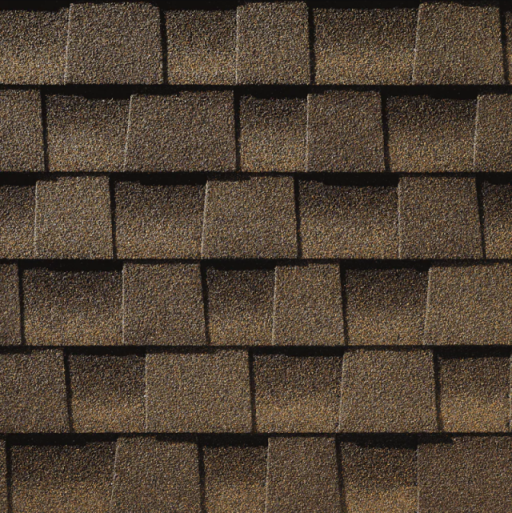

Barkwood

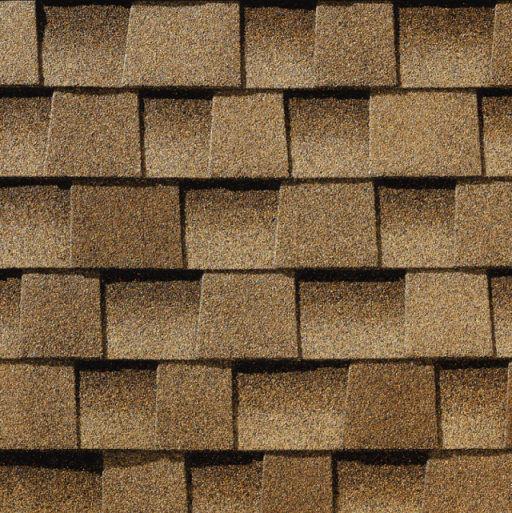

Shakewood

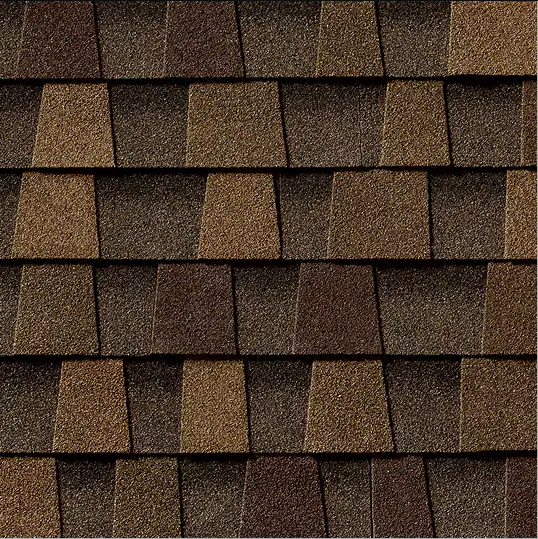

Chestnut Valley

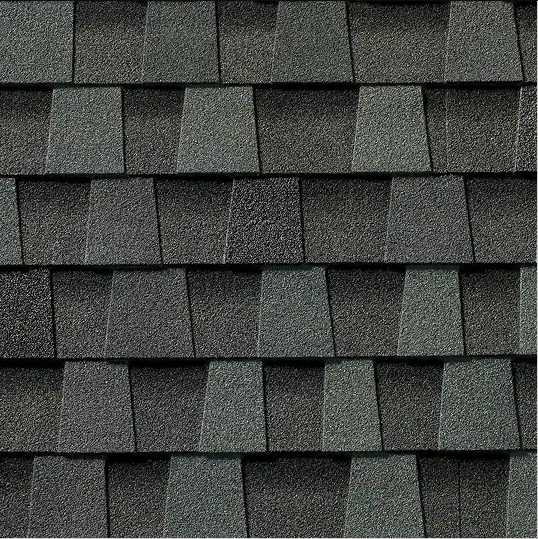

Cliffside

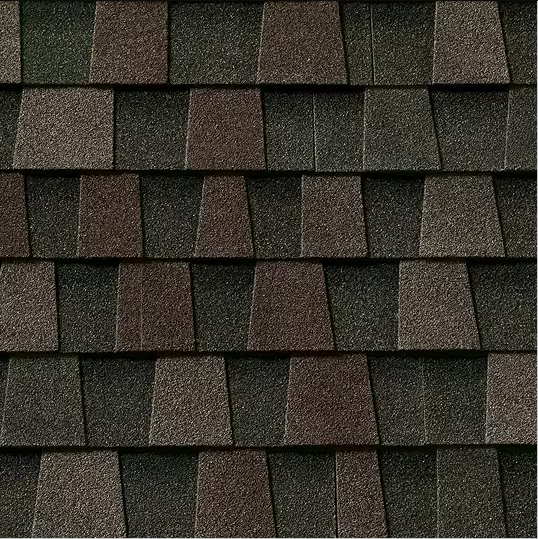

Midnight Mesa

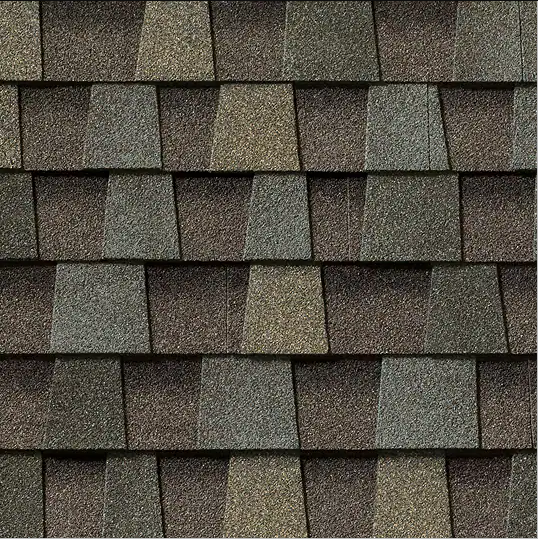

Sierra Sand
Two Color Collections
Choose High Definition® colors for classic elegance with patented shadow bands, or Bold Definition colors for a striking statement (US only).
Final color selections should be made using full-size shingle samples. Call (817) 803-9378 for current color availability.
Class 3 Impact Resistance†
Timberline HDZ® Shingles pass the UL 2218 Class 3 Impact Resistance Test and may qualify for insurance discounts.
Specifications
| Standards | UL 790 Class A fire; ASTM D7158 Class H wind; ASTM D3161 Class F wind; ASTM D3018 Type 1; ASTM D3462; ICC-ES AC438; UL 2218 Class 3 impact |
|---|---|
| Approvals | Miami-Dade County Product Control Approved (some plants); State of Florida Approved; Texas Department of Insurance Listed; ICC-ES ESR-3267; CSA A123.5 (some plants); CRRC rated & CA Title 24 / City of LA (select colors) |
| Algae | StainGuard Plus™ 25-year limited warranty |
| Size | 13 1/4” x 39 3/8” (nominal); 5 5/8” exposure |
| Coverage | 64 pieces / square; 3 bundles / square; 256 nails / square |
GAF product page & spec sheet | Warranty (PDF) ↗
*See the GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions. Lifetime coverage requires GAF Lifetime Shingles and at least 3 qualifying GAF accessories. 15-year WindProven™ Limited Wind Warranty (no maximum wind speed) requires GAF starter strips, roof deck protection, ridge cap shingles, and leak barrier or attic ventilation; see the GAF Roofing System Limited Warranty. 25-year StainGuard Plus™ coverage applies only to packages bearing the StainGuard Plus™ logo. †Only packages bearing the UL 2218 Class 3 statement are rated; GAF makes no warranty about impact performance against hail, and hail damage is not covered. Chestnut Valley, Cliffside, Midnight Mesa and Sierra Sand are Bold Definition colors (US only); additional colors available — call for availability.
